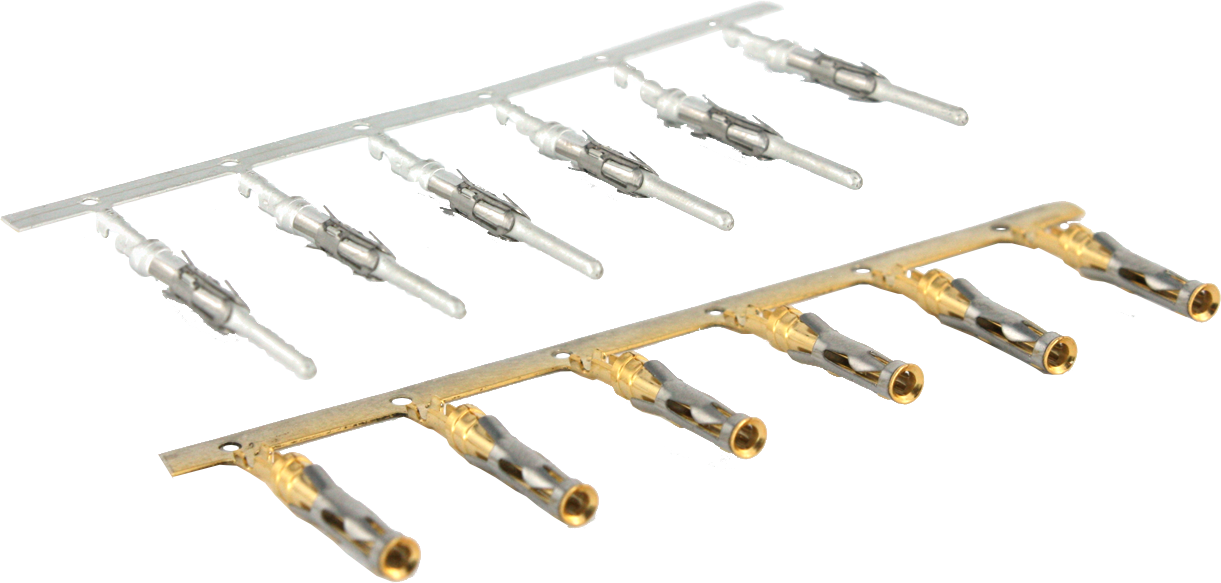

Standard Crimp Contact TT9316 reeled
The precision-punched contact, made from a special brass and stainless steel, can be used in all standard housings of the Toughcon® system. It combines good electrical characteristics with a favorable price. It is
available in different coatings and packaging. A large range of conductor cross sections is available.
| contact current rating (max) | 13 A at +68°F in free air |
| contact resistance | < 5mΩ |
| insertion/withdrawal force | < 4,5N |
| connection cycles min. | 500 gilded, 100 tin-plated |
| material | brass, stainless steel |
| AWG | 18-16 |
| wire | 0,75-1,5mm² / 0.00116-0.00233 inch² |
| Ø insulation diameter | 2,0 - 2,5mm / 0.08-0.1 inch |
| types | pin, socket, leading pin |
| reel sizes | 5000 contacts |
Please note that contacts on a reel can only be ordered in multiples of 5,000. Please check the packing unit (reel size).
| sorting | product number | type | coating | PU | in stock | price from | Download |
|---|---|---|---|---|---|---|---|
| sorting |
TT9316P-U3
|
pin | tin | 5000 | 275000 | 0,36 € | |
| sorting |
TT9316S-U3
|
socket | tin | 5000 | 362739 | 0,36 € | |
| sorting |
TT9316G-U3
|
pin long | tin | 5000 | 150000 | 0,39 € | |
| sorting |
TT9316P-H3
|
pin | gold 0.75µm | 5000 | 5000 | 1,26 € | |
| sorting |
TT9316S-H3
|
socket | gold 0.75µm | 5000 | 10000 | 1,26 € | |
| sorting |
TT9316G-H3
|
pin long | gold 0.75µm | 5000 | 133520 | 1,38 € |
