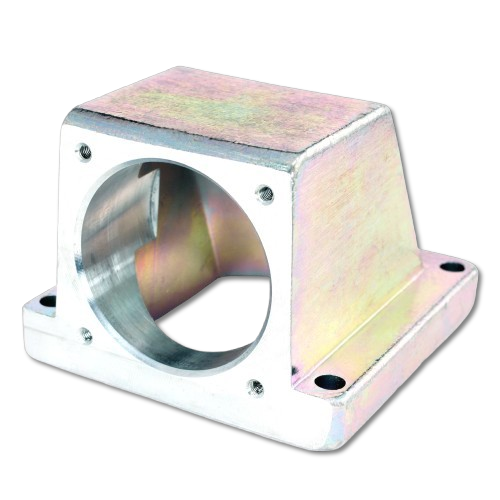

90° angled adapter metal size 23 - TM238-90
This angle adapter allows Toughcon panel mounted receptacles to be aligned at a 90°angle to the attachment surface. The attachment of the Toughcon panel mounted receptacles at the angle adapter is carried out using four screws.
| Material | Zinc die cast nickel-plated |
| Temperature range | -20 °C bis +100 °C / -4°F to +158°F |
| Scope of delivery | Flange angle with o-ring sealto attachment surface, flange seal, screws |
| IP Code | IP67 |
| size | 17 |
| A | 70 / 2.76 |
| B | 60 / 2.36 |
| C | 52 / 2.05 |
| D | 74 / 2.91 |
| E | 5,5 / 0.22 |
| Download |
from 36,32 €
Price plus VAT and shipping costs
Price plus VAT and shipping costs
| from 1 | pieces | 44,10 € |
| from 20 | pieces | 41,89 € |
| from 60 | pieces | 39,69 € |
| from 100 | pieces | 36,32 € |
available units
12 in stock
additional units in production
12 in stock
additional units in production
updated cart
