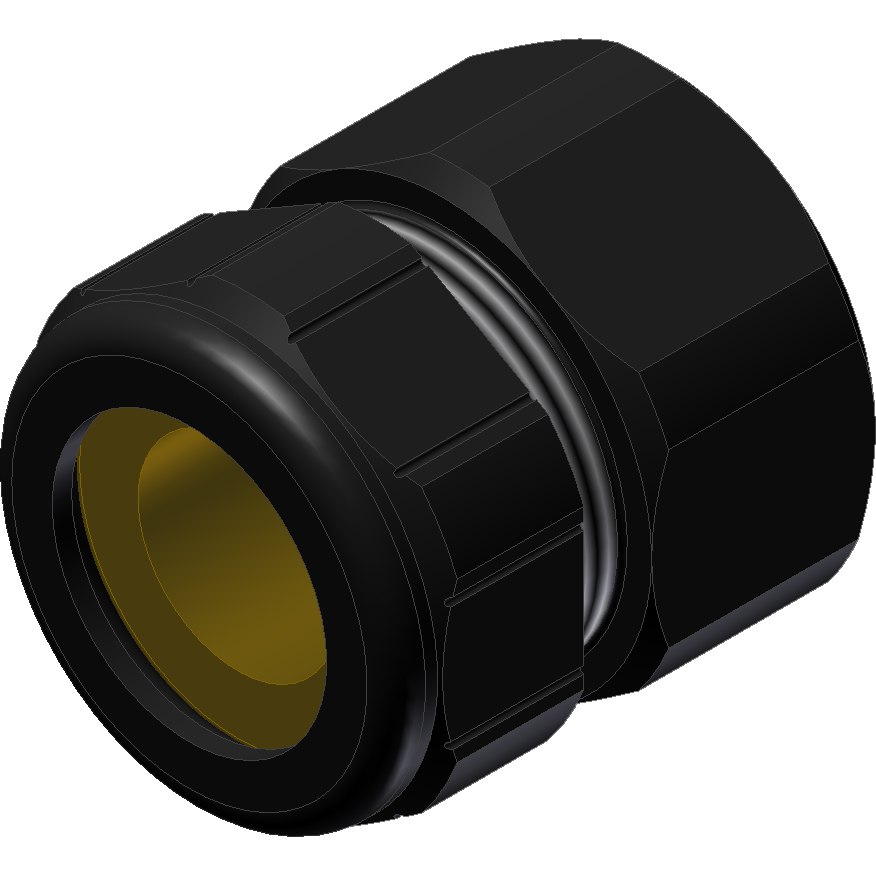

backshell cable gland complete set size 23 - TT238UD-SD20
The complete kit consists of the backshell, gasket insert, set screw and backshell gasket. There is no need to order the components separately. This allows standard applications to be assembled quickly and easily. Special requirements can be met by customizing individual components.
| Material | POM (Seal insert TPE) |
| Temperature range | -55 °C bis +105 °C / -22°F to +221°F |
| Scope of delivery | backshell, backshell seal, cable gland, seal-insert standard, pressure screw standard, |
| IP Code | IP65, IP67 on the cable side |
| size | 23 |
| Ø cable (jacket) | 17,0 - 20,5 / 0.67 - 0.81 |
| ØA | 46,5 / 1.83 |
| B | 43 / 1.69 |
| C | 49 / 1.93 |
| Download |
from 8,20 €
Price plus VAT and shipping costs
Price plus VAT and shipping costs
| from 1 | pieces | 20,28 € |
| from 20 | pieces | 18,38 € |
| from 40 | pieces | 12,67 € |
| from 100 | pieces | 10,44 € |
| from 260 | pieces | 10,01 € |
| from 500 | pieces | 9,51 € |
| from 1000 | pieces | 8,95 € |
| from 5000 | pieces | 8,20 € |
available units
23 in stock
additional units in production
23 in stock
additional units in production
