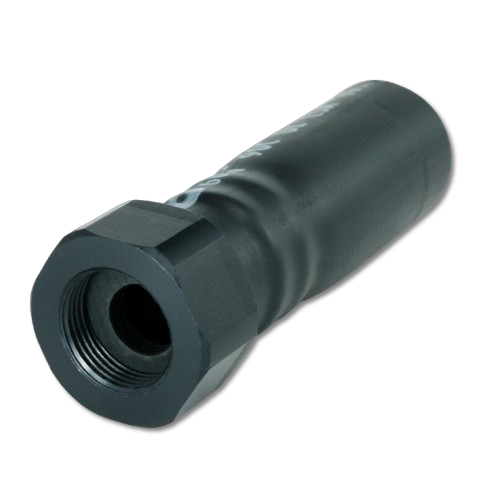

backshell heat-shrink tube size 11 - TT118ES-26
The backshell can easily be screwed onto the plug or socket and offers the possibility of laying sealed cables. The inside of the heat-shrink tube is coated with a special adhesive, which develops a material-coherent connection with the cable when heated. A secure sealing forms particularly with jacketed cables.
| Material | Anodized aluminum, polyolefin |
| Temperature range | -55 °C bis +90 °C / -22°F to +194°F |
| Scope of delivery | Backshell, heat-shrink tubing and backshell seal |
| IP Code | IP65 |
| size | 11 |
| ØA | 26 1.02 |
| B | 24 / 0.94 |
| C | 71,4 2.81 |
| Ø cable | 6,6-15,2 / 0.26-0.6 |
| Download |
from 5,06 €
Price plus VAT and shipping costs
Price plus VAT and shipping costs
| from 1 | pieces | 12,51 € |
| from 20 | pieces | 11,34 € |
| from 40 | pieces | 7,82 € |
| from 100 | pieces | 6,44 € |
| from 260 | pieces | 6,18 € |
| from 500 | pieces | 5,87 € |
| from 1000 | pieces | 5,52 € |
| from 5000 | pieces | 5,06 € |
available units
156 in stock
additional units in production
156 in stock
additional units in production
