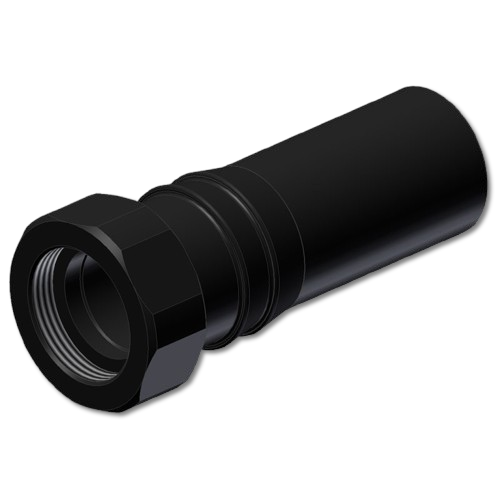

backshell heat-shrink tube size 17 - TT178ES-40
The backshell can easily be screwed onto the plug or socket and offers the possibility of laying sealed cables. The inside of the heat-shrink tube is coated with a special adhesive, which develops a material-coherent connection with the cable when heated. A secure sealing forms particularly with jacketed cables.
| Material | Anodized aluminum, polyolefin |
| Temperature range | -55 °C bis +90 °C / -22°F to +194°F |
| Scope of delivery | Backshell, heat-shrink tubing and backshell seal |
| IP Code | IP65 |
| size | 17 |
| ØA | 34 / 1.34 |
| B | 32 / 1.26 |
| C | 79,2 / 3.12 |
| Ø cable | 10,2-22,4 / 0.40-0.88 |
| Download |
from 6,78 €
Price plus VAT and shipping costs
Price plus VAT and shipping costs
| from 1 | pieces | 16,77 € |
| from 20 | pieces | 15,20 € |
| from 40 | pieces | 10,48 € |
| from 100 | pieces | 8,63 € |
| from 260 | pieces | 8,28 € |
| from 500 | pieces | 7,86 € |
| from 1000 | pieces | 7,40 € |
| from 5000 | pieces | 6,78 € |
available units
271 in stock
additional units in production
271 in stock
additional units in production
