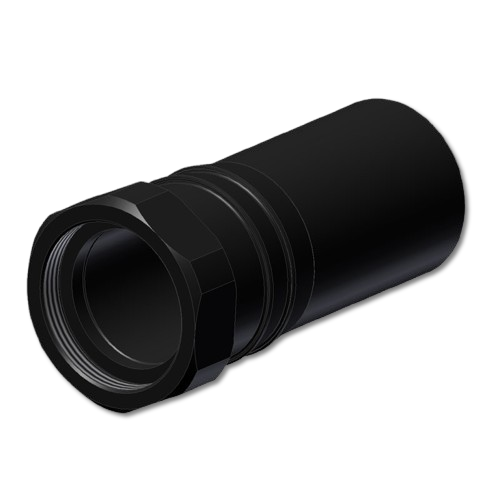

backshell heat-shrink tube size 23 - TT238ES-55
The backshell can easily be screwed onto the plug or socket and offers the possibility of laying sealed cables. The inside of the heat-shrink tube is coated with a special adhesive, which develops a material-coherent connection with the cable when heated. A secure sealing forms particularly with jacketed cables.
| Material | Anodized aluminum, polyolefin |
| Temperature range | -55 °C bis +90 °C / -22°F to +194°F |
| Scope of delivery | Backshell, heat-shrink tubing and backshell seal |
| IP Code | IP65 |
| size | 23 |
| ØA | 26 / 1.02 |
| B | 24 / 0.94 |
| C | 71,4 / 2.81 |
| Ø cable | 6,6-15,2 / 0.26-0.6 |
| Download |
from 7,81 €
Price plus VAT and shipping costs
Price plus VAT and shipping costs
| from 1 | pieces | 19,32 € |
| from 20 | pieces | 17,51 € |
| from 40 | pieces | 12,08 € |
| from 100 | pieces | 9,95 € |
| from 260 | pieces | 9,54 € |
| from 500 | pieces | 9,06 € |
| from 1000 | pieces | 8,53 € |
| from 5000 | pieces | 7,81 € |
available units
71 in stock
additional units in production
71 in stock
