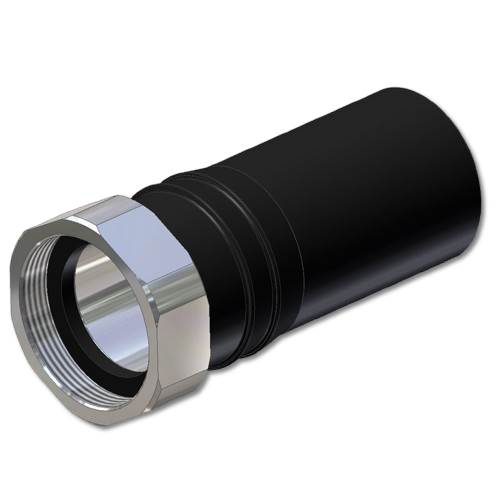

backshell heat-shrink tube metal size 23 - TM238ES-55
The backshell can be attached to the plug or socket with ease, allowing for the installation of sealed cables. The interior of the heat-shrink tube is coated with a special adhesive that, when heated, creates a material-coherent connection with the cable. Secure sealing is especially important in the case of jacketed cables.
| Material | Anodized aluminum, polyolefin |
| Temperature range | -55°C bis +90°C / -22°F to +194°F |
| Scope of delivery | Backshell with heat-shrink tubing and backshell seal |
| IP Code | IP65 |
| size | 23 |
| A | 44 / 1.73 |
| B | 41 / 1.61 |
| C | 90,9 / 3.56 |
| cable Ø | 14,0-27,9 / 0.55-1.10 |
| Download |
from 10,19 €
Price plus VAT and shipping costs
Price plus VAT and shipping costs
| from 1 | pieces | 25,19 € |
| from 20 | pieces | 15,74 € |
| from 60 | pieces | 14,17 € |
| from 100 | pieces | 12,96 € |
| from 260 | pieces | 12,44 € |
| from 500 | pieces | 11,81 € |
| from 1000 | pieces | 11,11 € |
| from 5000 | pieces | 10,19 € |
available units
0 in stock
additional units in production
0 in stock
additional units in production
