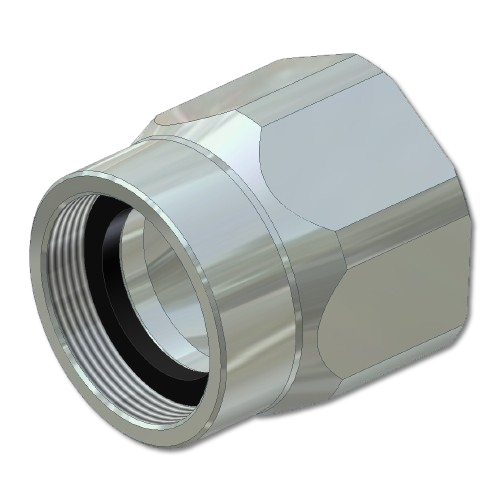

backshell PG/M thread size 23 - TM238GA-M40
The end housing with PG or M thread allows other components to be screwed onto the Toughcon plug or socket. This allows the application possibilities of the Toughcon series to be flexibly extended and combined with any cable glands.
| Material | Aluminum nickel-plated |
| Temperature range | -55 °C bis +105 °C / -22°F to +221°F |
| Scope of delivery | Backshell with PG or M threads and Backshell seal |
| IP Code | IP65, to IP67 on the cable side |
| size | 23 |
| thread | M40 |
| A | 50 / 1.97 |
| B | 46 / 1.81 |
| C | 48 / 1.89 |
| D | 44 / 1.73 |
| E | 27,9 / 1.10 |
| Download |
from 10,03 €
Price plus VAT and shipping costs
Price plus VAT and shipping costs
| from 1 | pieces | 24,80 € |
| from 20 | pieces | 15,50 € |
| from 60 | pieces | 13,95 € |
| from 100 | pieces | 12,77 € |
| from 260 | pieces | 12,25 € |
| from 500 | pieces | 11,63 € |
| from 1000 | pieces | 10,94 € |
| from 5000 | pieces | 10,03 € |
available units
42 in stock
additional units in production
42 in stock
additional units in production
