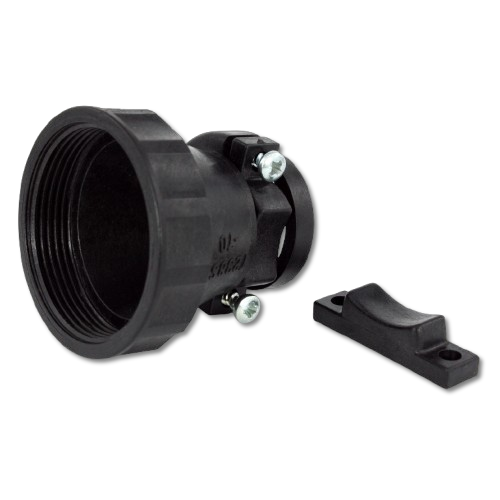

backshell strain relief size 23 - TT238SR-70
Both single wire bundles and cables of diverse diameters can be securely fastened via the strain relief. It can be quickly and easily screwed onto the Toughcon® plug or socket.
| Material | PPO mit GF |
| Temperature range | -55′C bis +105′C / -67°F to +221°F |
| Scope of delivery | Backshell, strain relief with up to two pivotable clamp bodies (depending on size) and screws |
| IP Code | IP44 |
Zugentlastung
| size | 23 |
| A | 40,6 / 1.60 |
| B | 39,4 / 1.55 |
| Ø cable | 8,6-17,8 / 0.34-0.70 |
| Download |
from 3,29 €
Price plus VAT and shipping costs
Price plus VAT and shipping costs
| from 1 | pieces | 8,15 € |
| from 20 | pieces | 7,38 € |
| from 40 | pieces | 5,09 € |
| from 100 | pieces | 4,19 € |
| from 260 | pieces | 4,02 € |
| from 500 | pieces | 3,82 € |
| from 1000 | pieces | 3,59 € |
| from 5000 | pieces | 3,29 € |
available units
1068 in stock
additional units in production
1068 in stock
