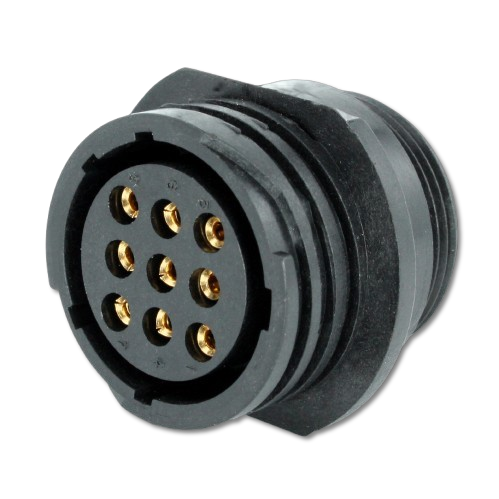

cable fit receptacle size 17 - TT1720-S09
The cable fit receptacle is made from glass-fibre-reinforced plastic and features an end catch mechanism to protect against vibrations. Depending on the housing size, it is possible to construct up to two different structures, which differ in terms of pol number and contact arrangement.
Please refer to the detailed instructions provided in the Toughcon catalogue.
contacts not included, please order separately.
| Material | PPO mit GF |
| Temperature range | -55 °C bis +105 °C / -67°F to +221°F |
| Scope of delivery | cable fit receptacle |
| IP Code | IP44/IP65 (Depending on the socket) |
Up to 9 socket contacts
| IP Code | 44 |
| size | 17 |
| max. contacts | 9 sockets |
| ØA | 33,3 / 1.31 |
| B | 29,5 / 1.16 |
| C | 26,9 / 1.06 |
| Download |
