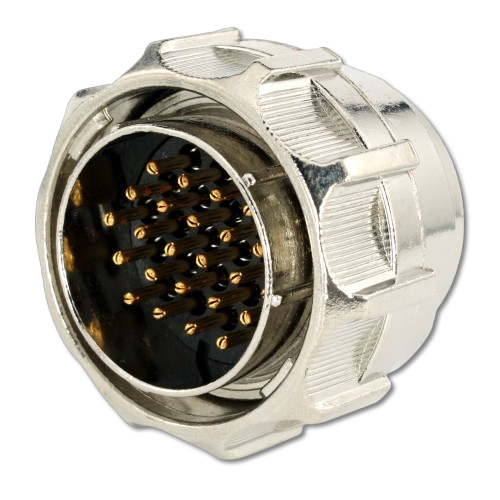

metal cable plug size 23 - TM2310-P24
The cable connector has a robust zinc die-cast housing with integral coupling nut and a precision machined plastic contact carrier. Depending on the size of the housing, up to two different versions are available, differing in the number and arrangement of contacts.
For maximum flexibility, the contact carrier can be coded by simply rotating it. can be coded by simply rotating it. Please refer to our Toughcon® catalogue for full details of available versions and application examples.
Notes on ordering:
- Contact carrier holders are not supplied as standard as end housings are generally used for cable receptacles.
- Contacts are also not included. Please order these separately to enable you to select the optimum wire gauge and coating for your application.
| Material | Zinc die-cast nickel-plated, PPO with GF |
| Temperature range | -55°C bis +105°C |
| Scope of delivery | Plug, contact carrier |
| Protection class | IP65 |
| size | 23 |
| max. contacts | 24 pins |
| A | 48,0 / 1.89 |
| B | 35,8 / 1.41 |
| C | 33,3 / 13.1 |
| D | 30,9-W / 1.22-W |
| Download |
from 8,68 €
Price plus VAT and shipping costs
Price plus VAT and shipping costs
| from 1 | pieces | 21,46 € |
| from 20 | pieces | 13,41 € |
| from 60 | pieces | 12,07 € |
| from 100 | pieces | 11,05 € |
| from 260 | pieces | 10,60 € |
| from 500 | pieces | 10,06 € |
| from 1000 | pieces | 9,47 € |
| from 5000 | pieces | 8,68 € |
available units
3497 in stock
additional units in production
3497 in stock
additional units in production
