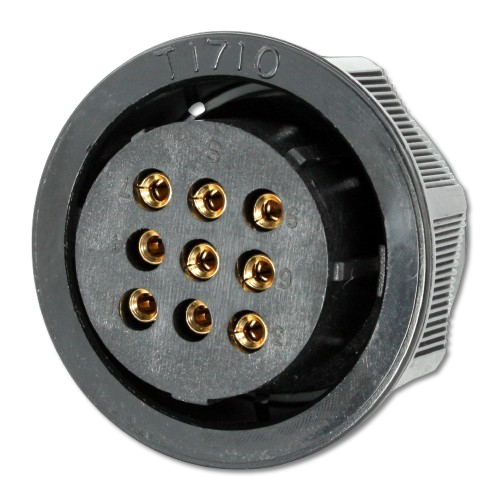

plug plastic size 17 - TT1710-S09
The connector is made of glass-fibre reinforced plastic and has a union nut. Depending on the size of the housing, up to two different constructions are possible, differing in the number of poles and contact arrangement. Please refer to the detailed instructions provided in the Toughcon catalogue.
contacts not included, please order separately.
| Material | PPO mit GF |
| Temperature range | -55 °C bis +105 °C / -67°F to +221°F |
| Scope of delivery | Plug |
| IP Code | IP44/IP65 (Depending on the socket) |
up to 4 socket contacts
| size | 17 |
| max. contacs | 9 sockets |
| ØA | 34,5 / 1.36 |
| B | 29,0 / 1.14 |
| C | 24,5 / 0.96 |
| D | 22,2 -W / 0.87 -W |
| Download |
from 2,22 €
Price plus VAT and shipping costs
Price plus VAT and shipping costs
| from 1 | pieces | 5,50 € |
| from 20 | pieces | 4,98 € |
| from 40 | pieces | 3,44 € |
| from 100 | pieces | 2,83 € |
| from 260 | pieces | 2,71 € |
| from 500 | pieces | 2,58 € |
| from 1000 | pieces | 2,43 € |
| from 5000 | pieces | 2,22 € |
available units
2323 in stock
additional units in production
2323 in stock
additional units in production
