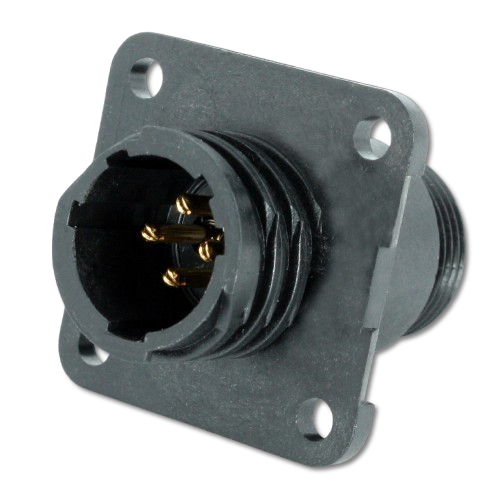

panel mounted receptacle size 11 - IP65 - TT1131-P04
The panel-mounted socket is made of a strong plastic that is protected against vibrations. Depending on the housing size, there are two different structures that could be used, and these have different pol numbers and contact arrangements. You can attach the panel-mounted socket to the device wall from the inside (up to a maximum thickness of 3.2 mm) or from the outside. You can find more information on the structure and other examples in our Toughcon catalogue.
contacts not included, please order separately.
| Material | PPO mit GF |
| Temperature range | -55 °C bis +105 °C / -31°F to +212°F |
| Scope of delivery | Panel mounted receptacle |
| IP Code | IP44/IP65 |
up to 4 pin contacts
Exactly like TT1130-P04, but with glued-in neoprene plug-in area seal TT118SR to ensure water resistance to IP65.
| size | 11 |
| IP Code | 65 |
| max. contacts | 4 pins |
| □A | 28,7 / 1.13 |
| □B | 21,4 / 0.84 |
| C | 33,8 / 1.33 |
| D | 2,3 / 0.09 |
| E | 10,7 / 0.42 |
| ØF | 3,3 / 0.13 |
| ØG | 18,3 / 0.72 |
| ØH | 20,7 / 0.82 |
| Download |
from 2,04 €
Price plus VAT and shipping costs
Price plus VAT and shipping costs
| from 1 | pieces | 5,05 € |
| from 20 | pieces | 4,57 € |
| from 40 | pieces | 3,16 € |
| from 100 | pieces | 2,60 € |
| from 260 | pieces | 2,49 € |
| from 500 | pieces | 2,37 € |
| from 1000 | pieces | 2,23 € |
| from 5000 | pieces | 2,04 € |
available units
5577 in stock
additional units in production
5577 in stock
additional units in production
