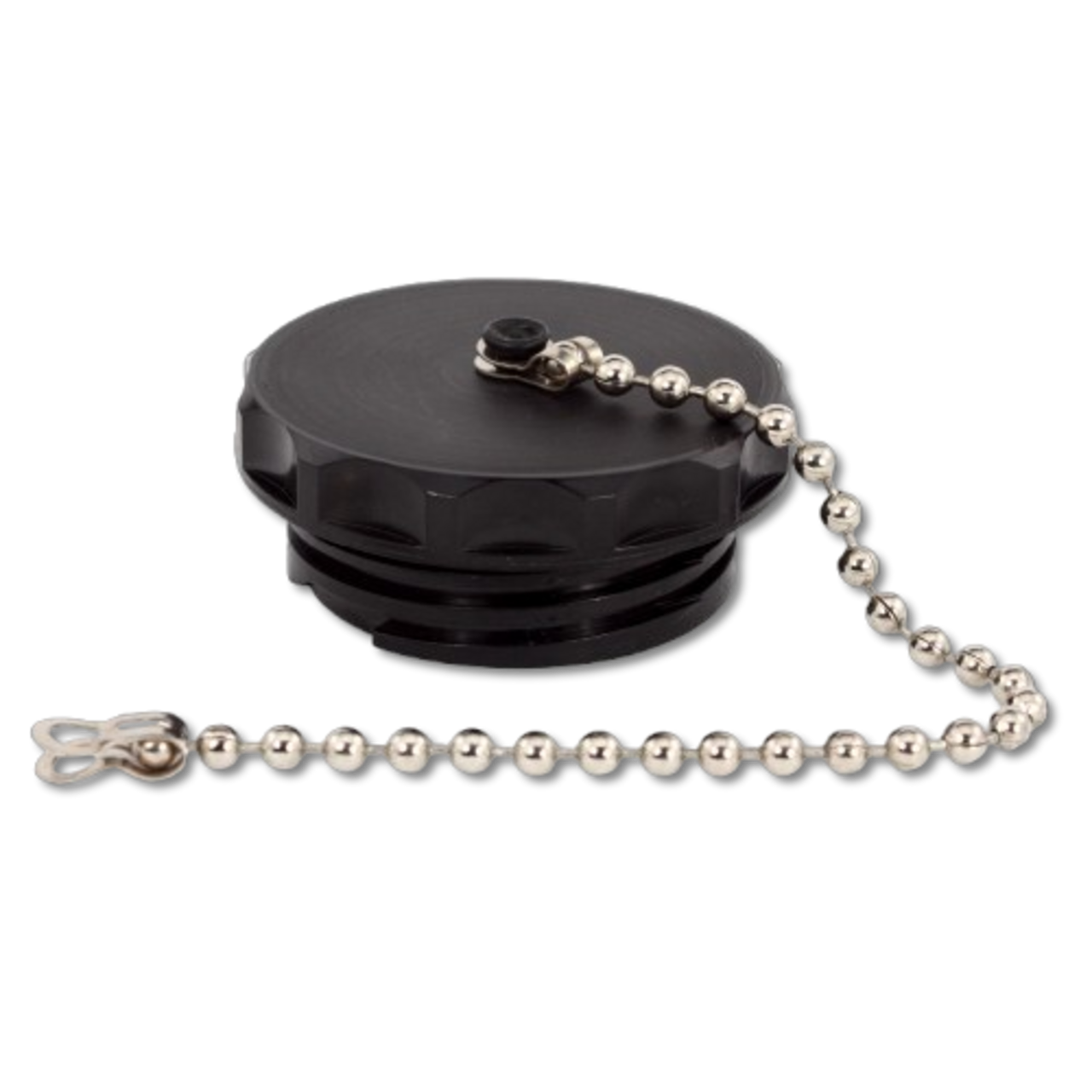

protective caps for plugs
The protective cap is recommended particularly for those applications where the detached Toughcon plug or the open socket comes into contact with humidity or dust. It can either be screwed to the socket or be fastened with cable ties (not included) to the cable. Loss of the protective cap is thereby avoided.
| Material | PPO and brass nickel-plated |
| Temperature range | -55 °C bis +105 °C / 31°F to +212°F |
| Scope of delivery | Protective cap with beaded chain, connection area seal |
| IP Code | Corresponds to that of the plug |
| sorting | product number | size | A | B | C | D | PU | in stock | price from | Download |
|---|---|---|---|---|---|---|---|---|---|---|
| sorting |
TT178DCP
|
17 | 36,4 / 1.433 | 14 / 0.551 | 125 / 4.921 | 4 / 0.157 | 20 | 234 | 0,00 € | |
| sorting |
TT118DCP
|
11 | 25,4 / 1.0 | 13,2 / 0.52 | 125 / 4.921 | 4 / 0.157 | 40 | 2956 | 0,00 € | |
| sorting |
TT238DCP
|
23 | 25,4 / 1.0 | 13,2 / 0.52 | 125 / 4.921 | 4 / 0.157 | 10 | 500 | 0,00 € |
