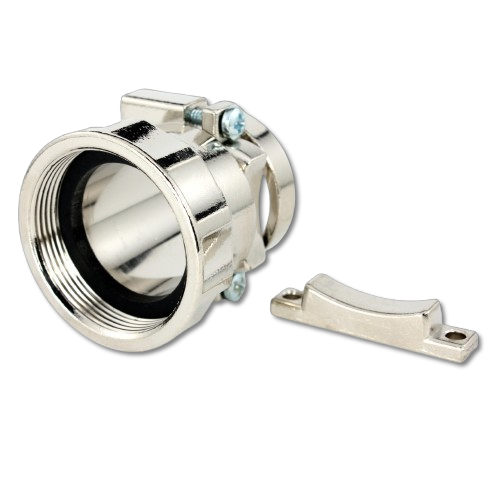

backshell strain relief metal size 23 - TM238SR-112
Both single wire bundles and cables of diverse diameters can be securely fastened with the strain relief. It can be quickly and easily screwed onto the Toughcon plug or socket.
| Material | Zinc die cast nickel-plated |
| Temperature range | -30°C bis +105°C / -22°F to +221°F |
| Scope of delivery | Backshell, strain relief with up to 2 pivotable clamp bodies (depending on size), screws and backshell seal (no sealing function) |
| IP Code | IP65 |
| size | 23 |
| A | 43,2 / 1.70 |
| B | 42,2 / 1.66 |
| Ø cabel | 14,5-28,4 / 0.57-1.12 |
| Download |
from 8,64 €
Price plus VAT and shipping costs
Price plus VAT and shipping costs
| from 1 | pieces | 21,37 € |
| from 20 | pieces | 13,36 € |
| from 60 | pieces | 12,02 € |
| from 100 | pieces | 11,00 € |
| from 260 | pieces | 10,55 € |
| from 500 | pieces | 10,02 € |
| from 1000 | pieces | 9,43 € |
| from 5000 | pieces | 8,64 € |
available units
1738 in stock
