Endgehäuse PG/M Gewinde Kunststoff

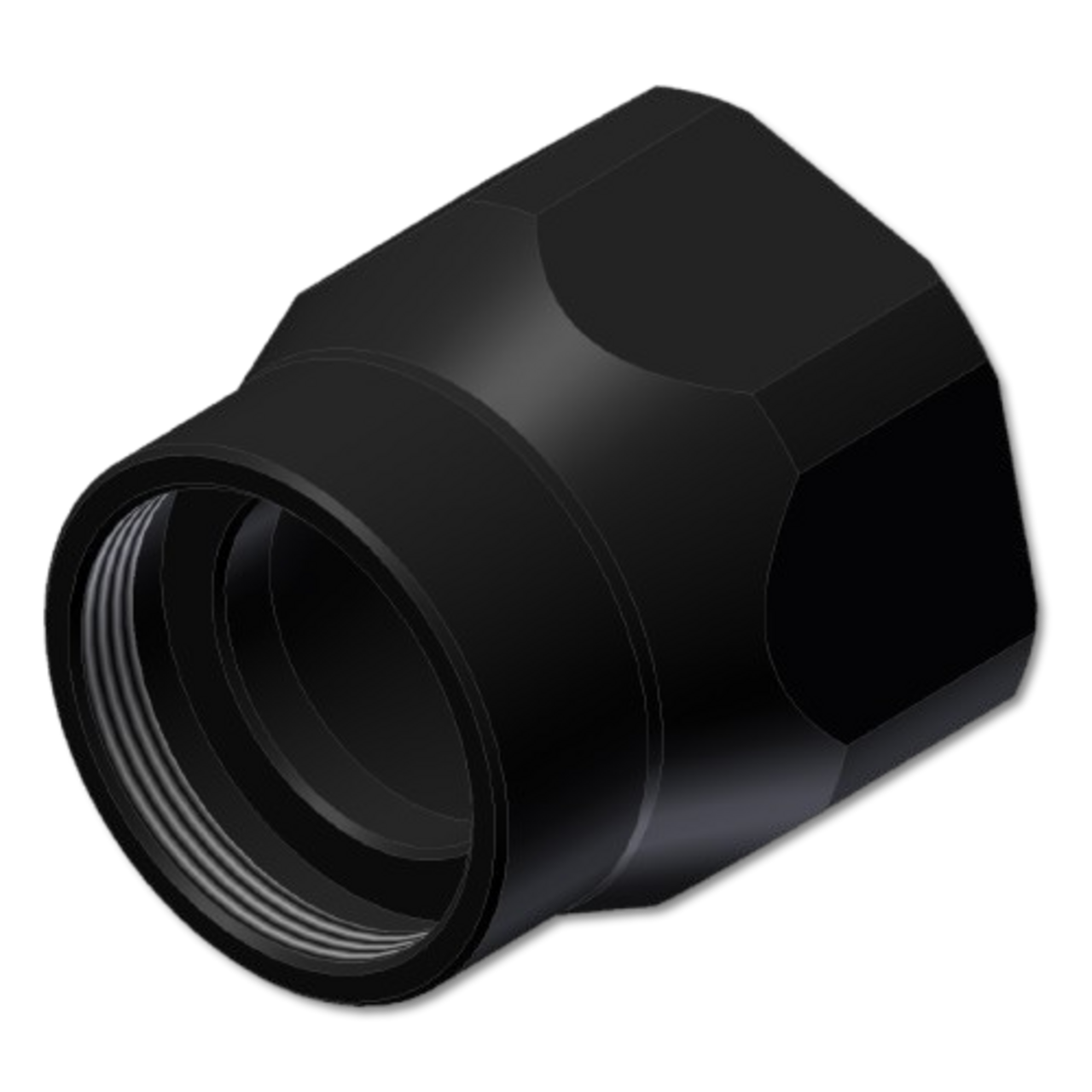

Durch das Endgehäuse mit PG- bzw. M-Gewinde lassen sich weitere Bauteile auf den Toughcon-Stecker bzw. die Steckdose aufschrauben,wie z.B. Kabelverschraubungen, um das Spektrum der Einsatzmöglichkeiten zu erweitern.
PG- vs. Metrische Gewinde
Merkmal | PG-Gewinde (Panzer-Gewinde) | Metrisches Gewinde (M-Gewinde) |
---|---|---|
Ursprung | Deutschland, frühes 20. Jahrhundert | Internationaler Standard (ISO) |
Maßeinheit | Angelehnt an alte Zollgrößen | Exakt metrisch (Millimeter) |
Bezeichnung | PG 9, PG 13.5, PG 21 usw. | M12, M16, M20 usw. |
Steigung | Variabel, nicht genormt | Fest definierte Steigungen |
Außendurchmesser | Unregelmäßig (z.B. PG 13.5 ≈ 20,4 mm) | Exakt (z.B. M20 = 20,0 mm) |
Einsatzgebiet | Ältere Industrieanlagen, Elektrotechnik | Moderne Maschinen, internationale Systeme |
Vorteil | Robust, traditionell verbreitet | Präzise, weltweit einheitlich |
Nachteil | Schwammige Maßangaben, schwer kompatibel | Normung zwingend, weniger "Toleranz" |
Aktueller Trend | Wird zunehmend abgelöst | Dominanter Standard weltweit |
sorting | Produktnummer | Größe | Gewinde | A | B | C | D | E | VPE | auf Lager | Preis ab | Download |
---|---|---|---|---|---|---|---|---|---|---|---|---|
sorting |
TT118GA-PG9
![]() |
11 | PG9 | 26,0 | 24,0 | 34,0 | 22,2 | 12,3 | 20 | 0 | 4,29 € | |
sorting |
TT118GA-PG11
![]() |
11 | PG11 | 26,0 | 24,0 | 38,0 | 22,2 | 12,3 | 20 | 0 | 4,29 € | |
sorting |
TT178GA-PG11
![]() |
17 | PG11 | 34,0 | 32,0 | 34,0 | 34,0 | 17,3 | 10 | 85 | 6,89 € | |
sorting |
TT178GA-PG13
![]() |
17 | PG13,5 | 34,0 | 32,0 | 34,0 | 34,0 | 18,5 | 10 | 140 | 6,89 € | |
sorting |
TT238GA-PG16
![]() |
23 | PG16 | 44,0 | 41,0 | 38,0 | 40,0 | 21,1 | 10 | 122 | 6,55 € | |
sorting |
TT238GA-PG21
![]() |
23 | PG21 | 44,0 | 41,0 | 34,0 | 40,0 | 26,0 | 10 | 113 | 7,87 € | |
sorting |
TT238GA-PG29
![]() |
23 | PG29 | 50,0 | 46,0 | 48,0 | 40,0 | 26,0 | 10 | 17 | 7,59 € | |
sorting |
TT118GA-M16
![]() |
11 | M16 x 1,5 | 26,0 | 24,0 | 34,0 | 22,2 | 12,3 | 20 | 74 | 4,52 € | |
sorting |
TT118GA-M20
![]() |
11 | M20 x 1,5 | 26,0 | 24,0 | 42,0 | 22,2 | 12,3 | 20 | 96 | 4,29 € | |
sorting |
TT178GA-M20
![]() |
17 | M20 x 1,5 | 34,0 | 32,0 | 34,0 | 34,0 | 18,5 | 10 | 370 | 5,48 € | |
sorting |
TT238GA-M20
![]() |
23 | M20 x 1,5 | 44,0 | 41,0 | 42,0 | 40,0 | 18,5 | 10 | 80 | 6,55 € | |
sorting |
TT238GA-M25
![]() |
23 | M25 x 1,5 | 44,0 | 41,0 | 34,0 | 40,0 | 23,5 | 10 | 349 | 7,47 € | |
sorting |
TT238GA-M32
![]() |
23 | M32 x 1,5 | 44,0 | 41,0 | 38,0 | 40,0 | 26,0 | 10 | 46 | 6,55 € | |
sorting |
TT238GA-M40
![]() |
23 | M40 x 1,5 | 50,0 | 46,0 | 48,0 | 40,0 | 26,0 | 10 | 55 | 7,59 € |
